Printed Circuit Board Magnetic Loop

..

This loop was the result of researching materials that presents the best relationship between metal irradiating area associate with the lowest possible weights.

This loop is made on three 58 by 700 Mms pieces of printed circuit board soldered together, the end of each side is part of a sliding water variable capacitor.

Black shrinking spaghettis protect and reinforce the joints.

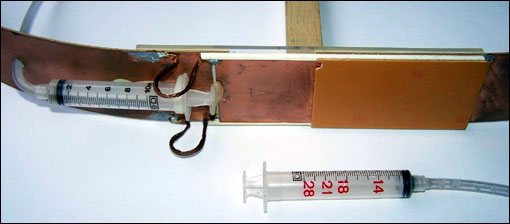

On the top is the water tuned sliding capacitor with the plastic water tube coupled to the adjusting serynger.



PY1 AHD ALEX (Alexandre Grimberg).
