Ilustraded, simple and quick AlexLoop HamPack RC-2 Remote Control instalattion.

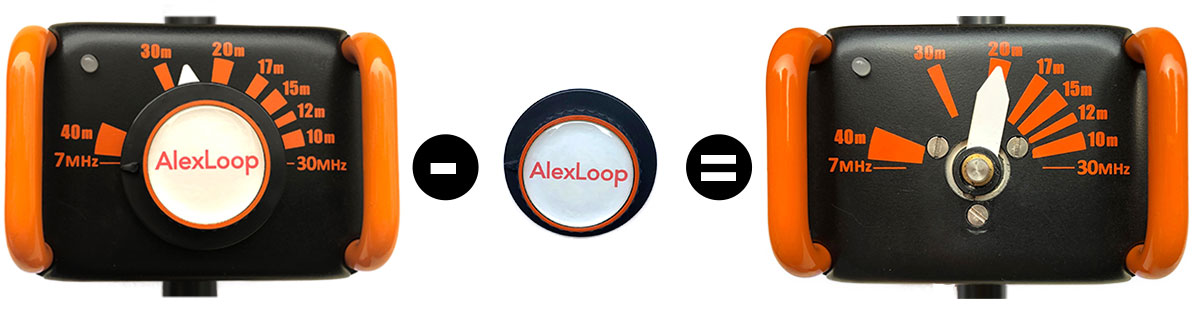

Carefull unscrew the tuning knob and remove it.

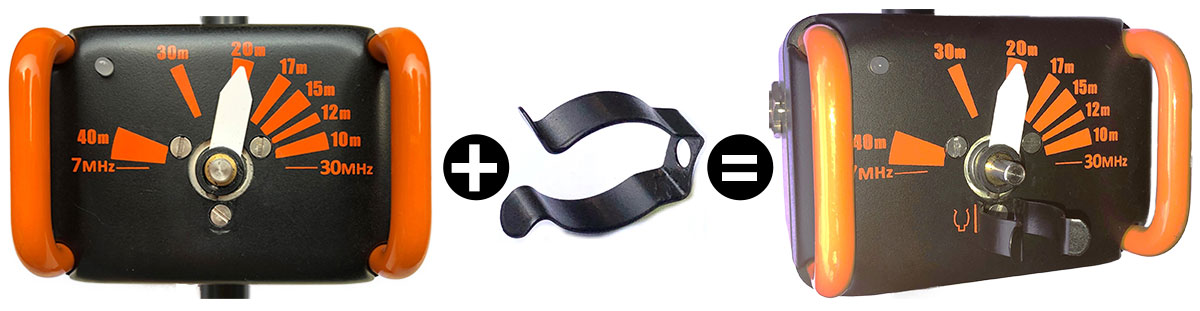

Remove the lower screw and use it to fix the motor bracket with the curved part on the direction of the pointer.

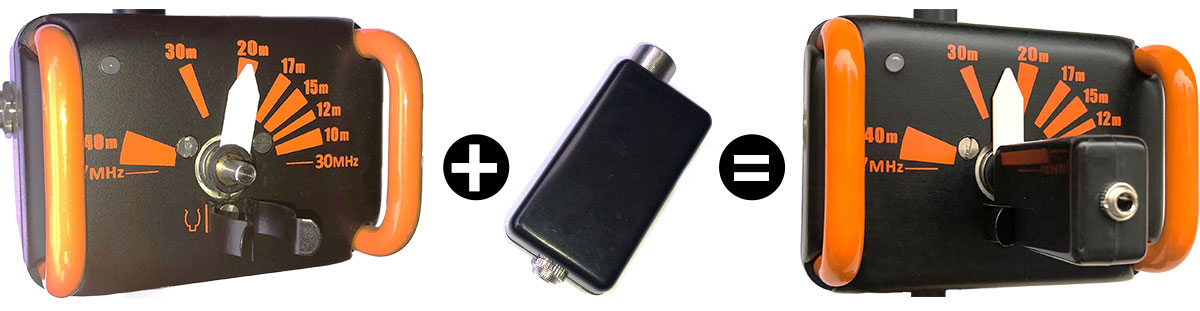

Engage the motor drive on the bracket at the same time you engage the motor to the capacitor aisle. Screw with moderated pressure the 3X3 Allen screw.
